China Laser Welder Machine Portable Stainless Steel 1000w Fiber Laser Welding Machine

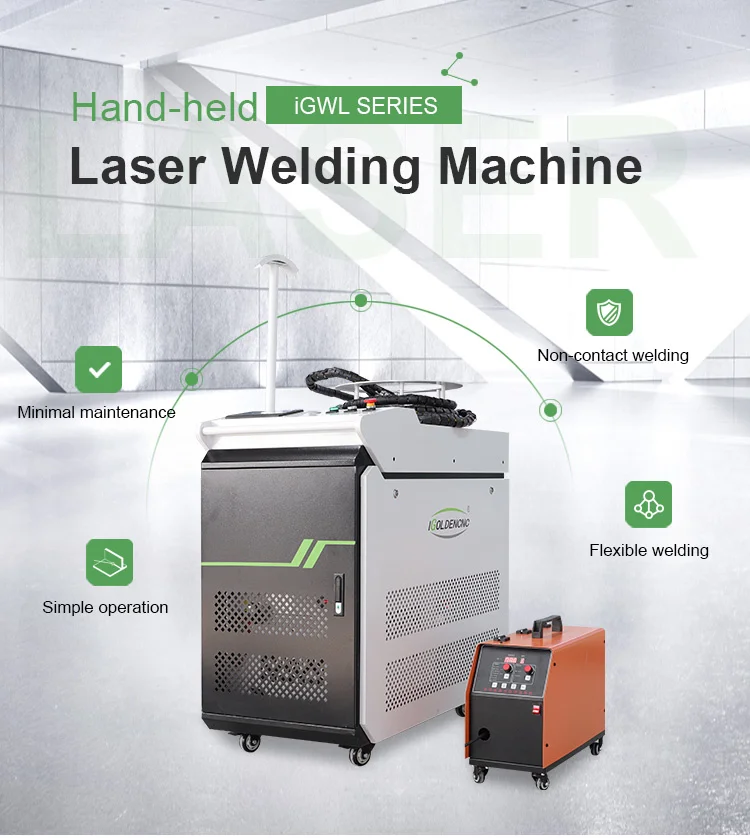

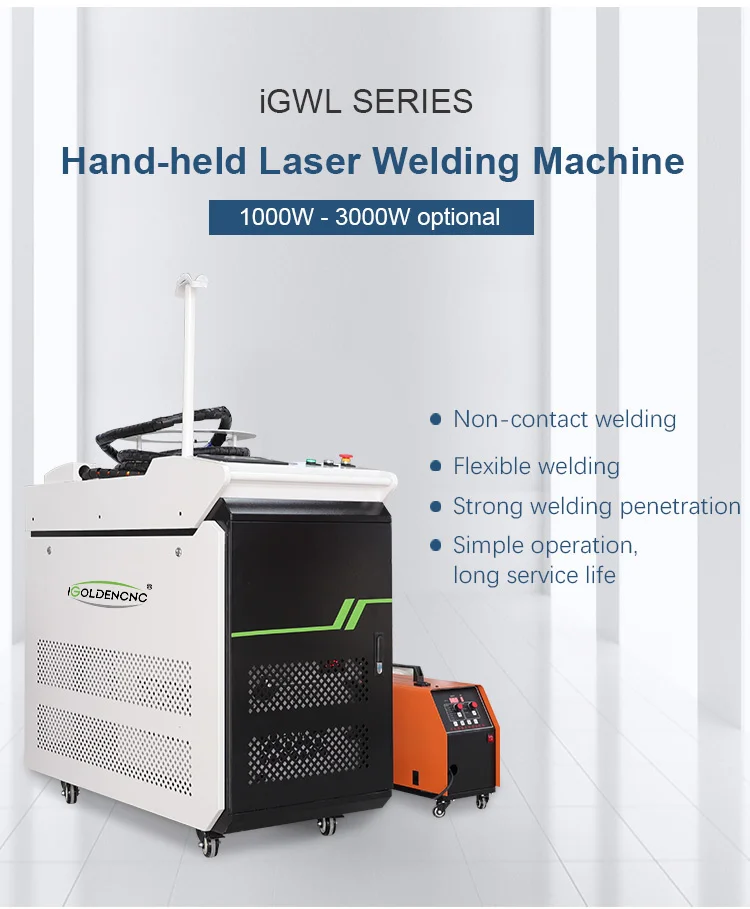

Products Description The handheld fiber laser welding machine adopts a closed case design. On the basis of the previous welding machine, it is equipped with a CNC wire feeder, equipped with a dual-drive intelligent control system and a high-brightness digital display. The welding effect is smoother and beautiful. It can greatly improve the work efficiency and quality of the welding machine and further save the processing cost. Product Parameters

Item No.	iGWL-HW
Laser Wavelength	1070nm
Laser Power	1000w/1500w/2000w
Fiber Type	Continuous/ Modulation
Welding Speed	0-120mm/s
Welding Thickness	0.2-6mm
Welding Gap Requirement	≤0.5mm
Laser Output Stability	±2%
Fiber Diameter	100μm
Fiber Length	8-10m (15m optioned)
Spot Diameter	Φ0.2mm
Pump Source	Semiconductor
Light Beam	≤1.1
Voltage	220V/380V±5%, 50Hz/60Hz
Cooling Method	Water-cooling
Water-cooling Temperature	15-35℃
Machine Size	600*1200*1100+600mm
Machine Weight	235kg
Packing Size	620*1220*1350mm
Packing Weight	265kg

Details Images

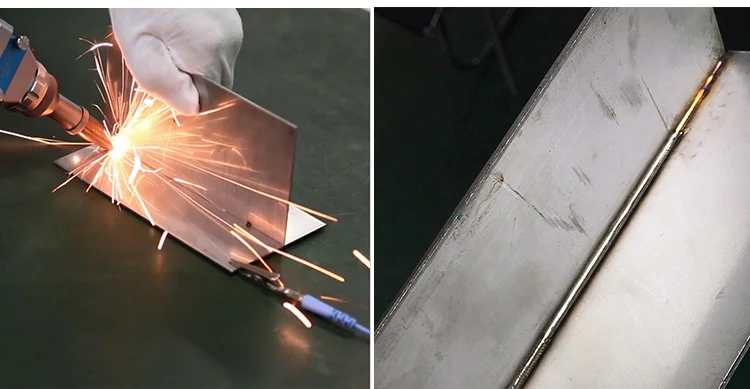

Hand-held welding laser head

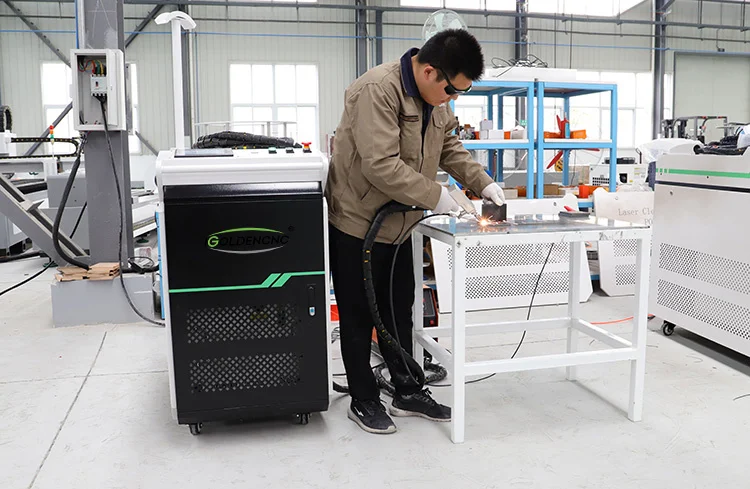

The handheld laser welding machine can perform long-distance laser welding of large workpieces. The heat affected area is small during welding, and it will not cause deformation, blackening, and traces on the back of the work piece.The connection depth is large, the welding is firm, and the melting is sufficient.There is no depression in the joint between the raised part of the molten material in the bath and the substrate! The welding speed is fast, 2-10 times faster than traditional welding, and one machine can save at least 2 welders a year.

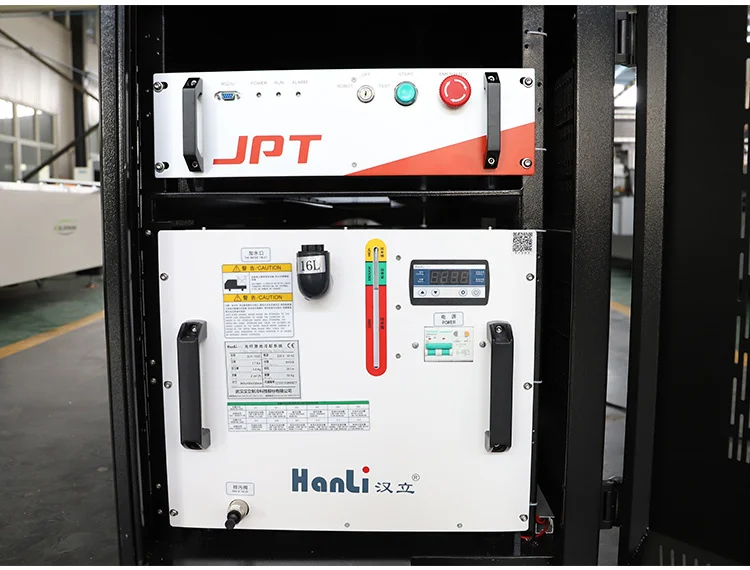

Laser source

The laser adopts water-cooled heat dissipation and rack-mounted chassis design. It has many advantages such as high electro-optical conversion efficiency, low energy consumption, compact structure, adjustment-free maintenance, and easy integration for customers. It is industrial laser cleaning and other Ideal light source for application.

HANLI Chiller

 1. The cooling capacity is up to 1400W, and environmentally friendly refrigerants can be used; 2. Small size, long life and durable, easy to operate; 3. The temperature control accuracy can reach +0.3C; 4. The intelligent thermostat  has two temperature control modes, which are suitable for different use occasions; it has a variety of settings and fault display functions; 5. With multiple alarm protection functions.
Sample Suitable for welding of stainless steel, iron sheet, aluminum, copper, alloy, steel, diamond equivalent materials or dissimilar materials, cabinets, kitchens, stair elevators, shelves, ovens, stainless steel doors and windows guardrails, distribution boxes,Stainless steel household and other industries. Why Choose Us Recommend Products Fiber laser cutting machineFiber laser cleaning machineFiber laser welding machine
