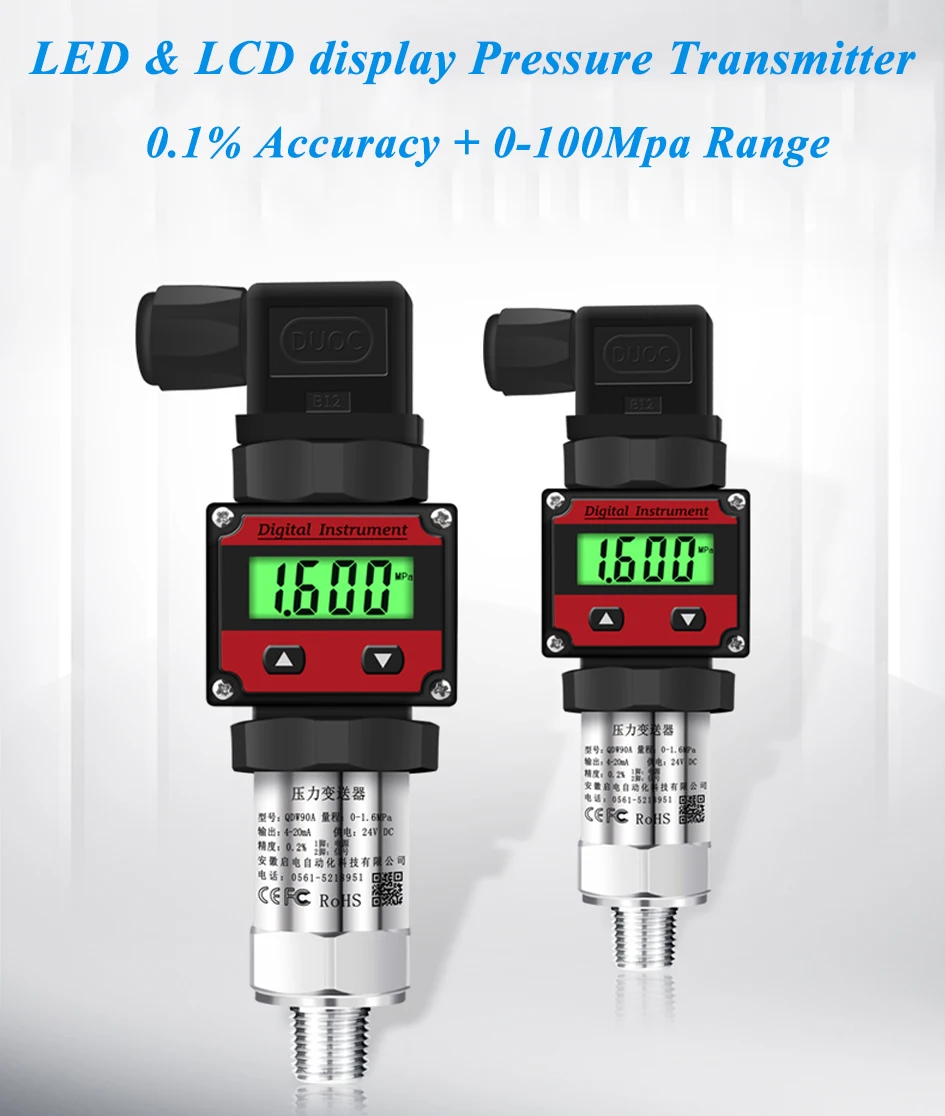

China Pressure Transmitter 4-20mA 0-16bar Industrial Pressure Transducer With G1/4 Thread Small Pressure Sensor With LCD Display

We Default Supply G1/4 Thread + DC24V Power

Customize Measuring Range -0.1Mpa ~ 60Mpa

Customize Various Thread  G1/8  G1/4  G1/2  M20*1.5  M18*1.5   NPT1/4  NPT1/2  NPT1/8 and etc

Customize Kind of Output Signal  4-20mA 0-10mA 0-20mA 0-10V 0-5V  1-5V  RS485

Contact me with your demand if you didn't get in our line. Thanks

Notice: Please do not change anything after you receive the transmitter, We've already setted the parameters in our factory， if you have any enquiry , please contact us.

Features:
1. Over-voltage & Over-current protection circuit.
2. Strong ability of anti overload, impact resistance and anti-interference.
3. High stability and long service life
4. Laser impedance modulation, temperature compensation, surge prevention.
5. Imported silicon chips. suitable for different pressure measurement.

Our Advantages；

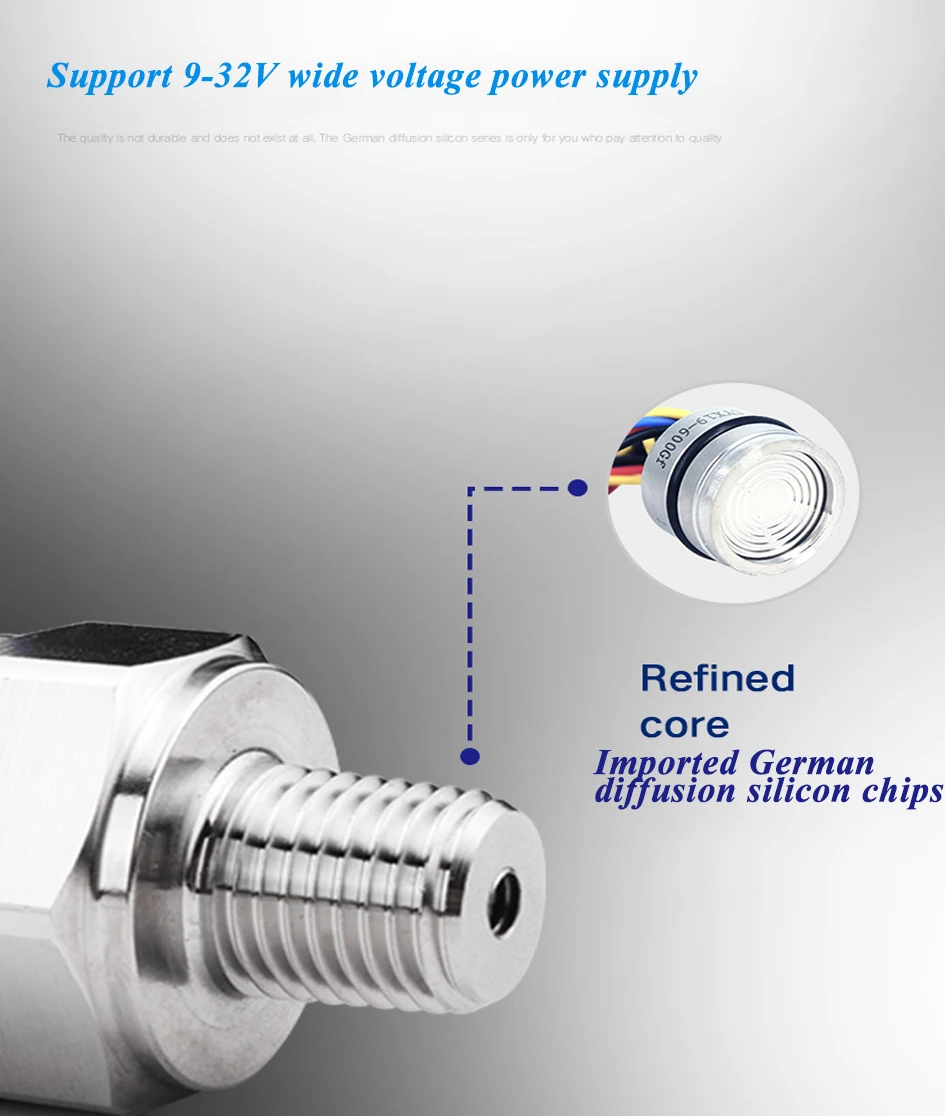

1. Diffusion silicon chips imported from Germany can measure various media with high precision. Perfect for various working conditions.

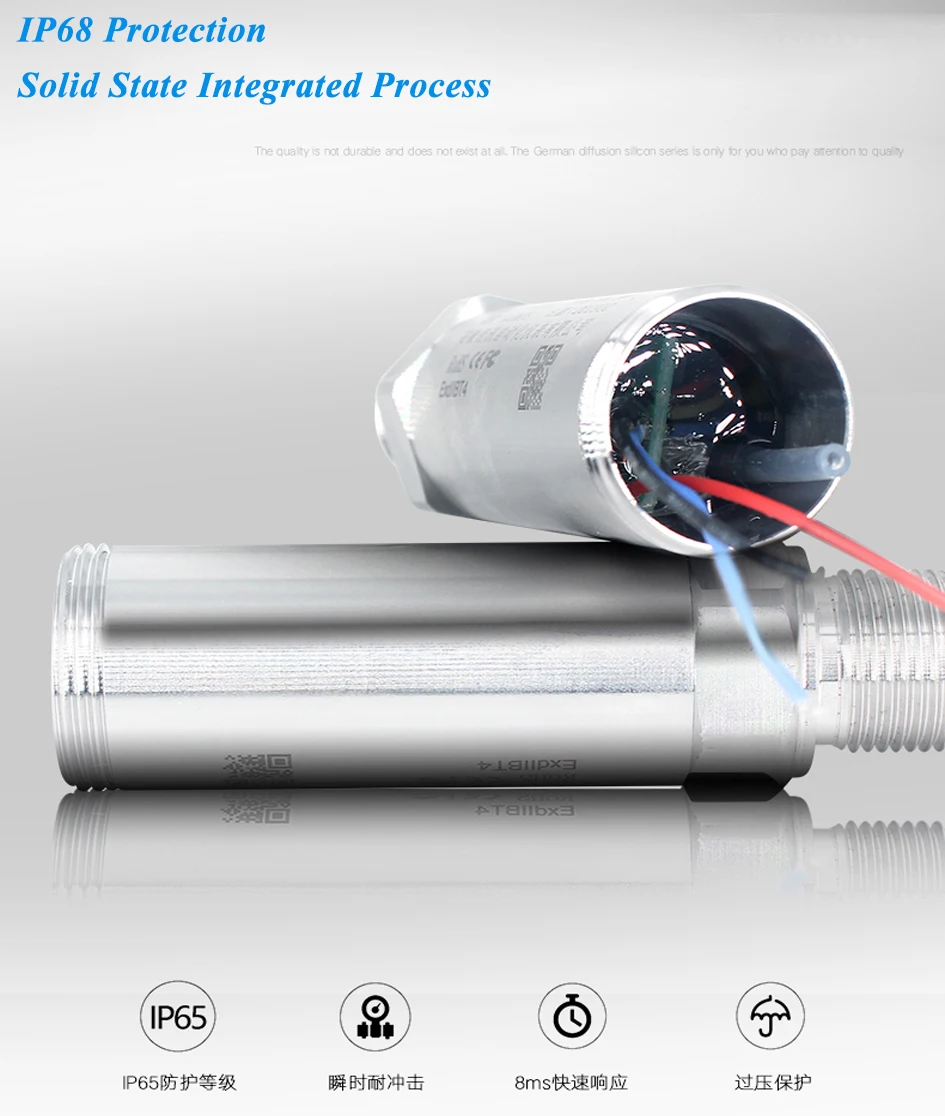

2. Each transmitter has a 304 stainless steel housing. The sensor diaphragm is made of 316L material.

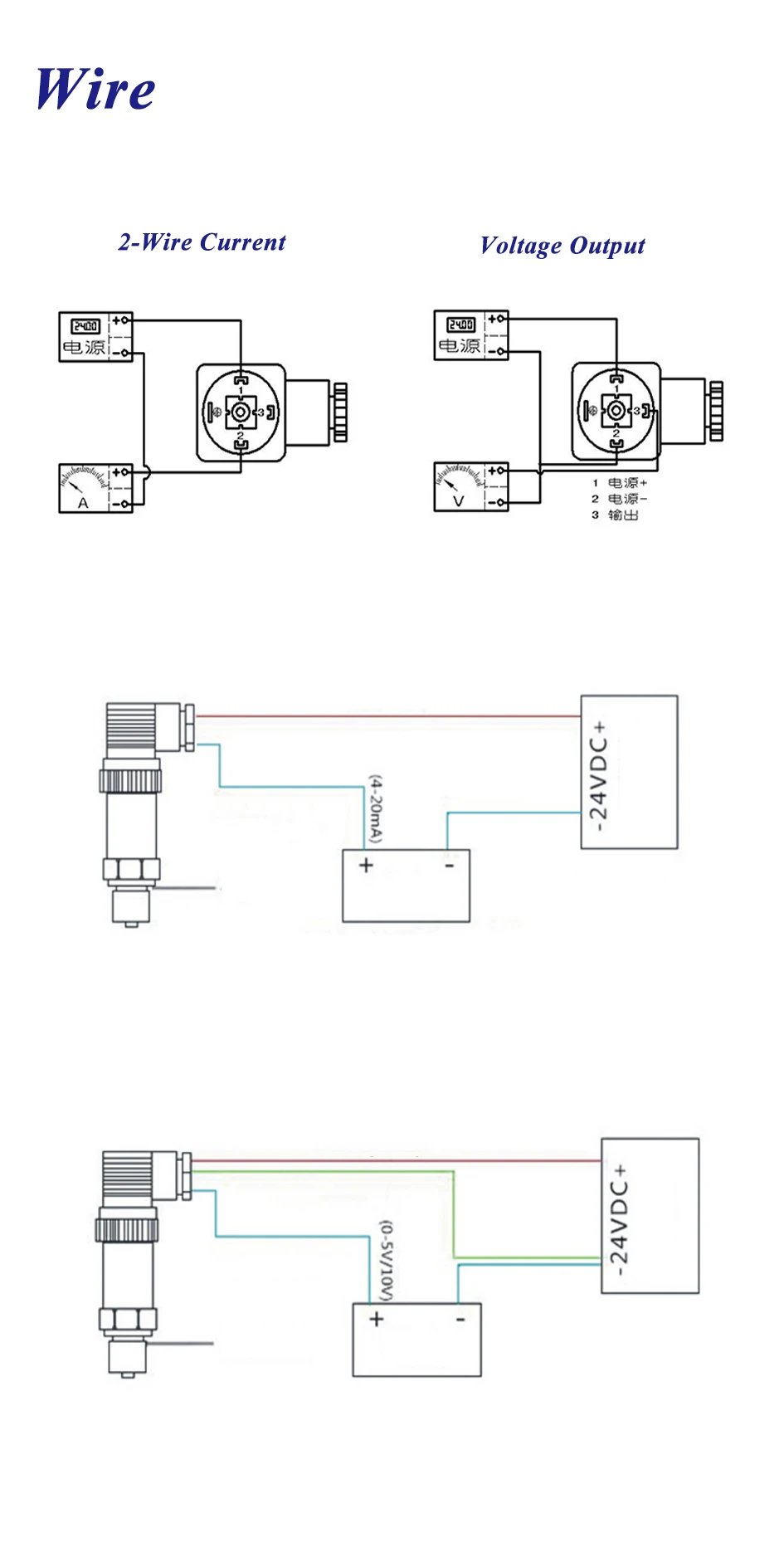

3.The pressure sensor can output a variety of signals, and select the appropriate signal access according to the customer's PLC/DCS. Conventionally, it can output 4-20mA 0-10V RS485 signal of 2-wire / 3-wire / 4-wire.

4. We specialize in the production of pressure transmitters for more than 20 years. 20 years of technology accumulation, can be shipped within 3 days. The fastest can be done within 2 days of delivery. The factory has a large number of semi-finished products all year round, which can respond to the urgent purchase of customers.

5. We have cooperative domestic express and international express, operate more than 10 domestic and foreign e-commerce platforms, and sign long-term strategic cooperation with internationally renowned express companies, which can ensure that your orders arrive in your hands quickly and completely.

6.We have a mature after-sales service system, any product quality problems or product service problems, you can contact our customer service staff to ensure that you are satisfied with the reply.
