Easy Use Automatic PCB Printing Machine with 2 Cameras and 29 Feeders, Desktop SMT Pick and Place Machine for SMT Line
Free shipping TNT/ DHL door to door.Delivery days 3-5 Working days!

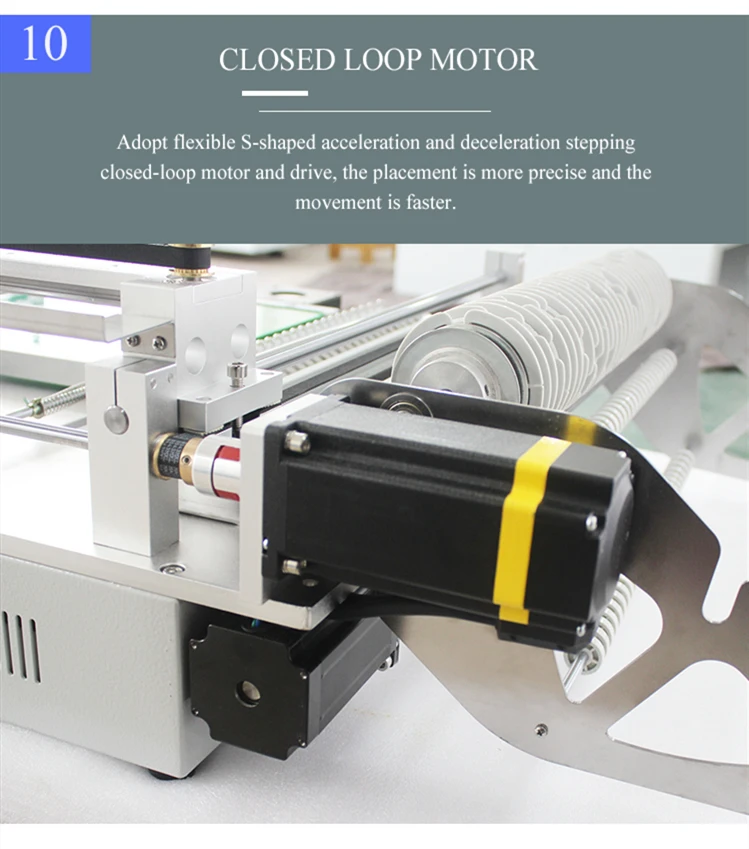

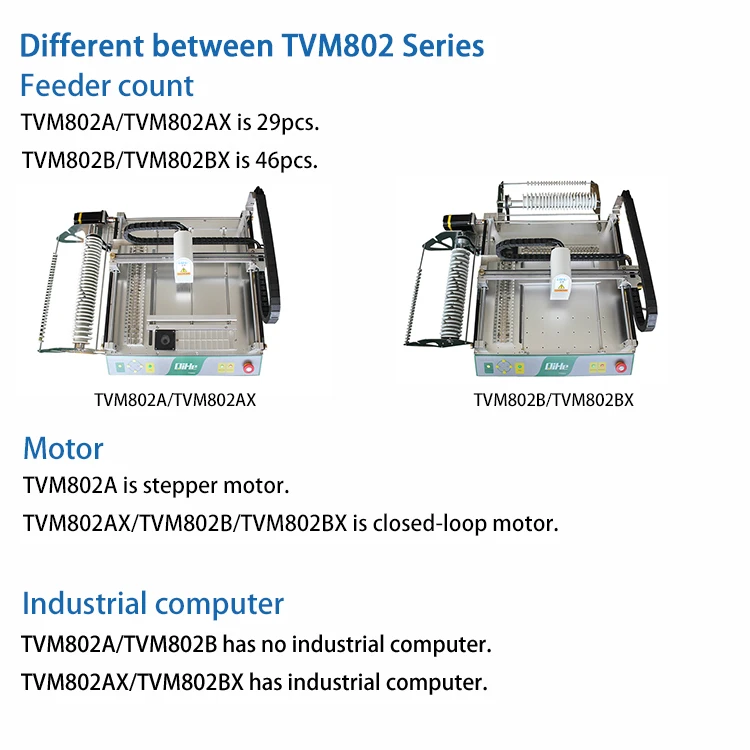

If you have any questions about the price, you can contact our customer service staff to discuss.TVM802AX with visual placement machine.（Note: This link not include computer, you can directly use your own computer with windows7 system :)） QIHE TVM802 working video: QIHE TVM802 Series Visual Mounting LED Working Video：http://www.qhsmt.com/shibinzhongxin/tvm802seriesvisualmountingledlamp.html QIHE TVM802 Placement 0603 LQFP48 Working Video:http://www.qhsmt.com/shibinzhongxin/tvm802precisionsmticvideo.html QIHE TVM802 Placement 0402 0603 0805 Working Video:http://www.qhsmt.com/shibinzhongxin/rev040206030805andtvm802visualpastedonthepackage.html QIHE TVM802 Without Vision Visual Mounting LED Working Video:http://www.qhsmt.com/shibinzhongxin/rev040206030805butvisualandtvm802pastedon.html TVM802AX Intrduction TVM802AX automatic visual pick and place machine has upgrade some core parts such as upper and bottom visual system, patented roll feeder, built-in industrial computer, high voltage motor drive system,Flexible S-type acceleration. Has received the customer consistent high praise and the praise. TVM802AX Feature 1. intelligent double vision 2. 29pcs standard reel feeders 3. StepperClosed-loop motor 4. Built-in industrial computer The TVM802 software was developed by ourselves. The software is available in English. And our software will be updated, as soon as there is an update, the salesman will send new software to your mailbox. The TVM802 machine has one year warranty, lifetime maintenance. We have a professional after-sales team. As long as there is a problem with the machine within one year after purchase, we will repair it for free. If there is a need to replace the accessories, we will send them to your hands for free.(Generally we use TNT/DHL. 3-5 business days to your hands) TVM802A-X Packing List:1. Pick And Place Machine TVM802A-X: 1 Set (Exclude monitor, Mouse and keyboard)2. 4 Types Of Nozzle: Totally 4pcs(Version: No.1-1pc，No.2-1pc，No.3-1pc，No.4-1pc)3. Power Cord：1pc (110v/220v)4. Magnetic Needle：1pc5. 2.0mm Hex Screwdriver: 1 Set6. 4G USB flash drive: 1pc7. User Manual：1pc8. Test PCB: 1pcModel | TVM802A-X |
Max applicable PCB | 20mm*20mm—340mm*340mm |
Max XY Moving area | 395*450mm |
Placement head quantity | 2 |
Positioning accuracy | 0.025mm |
Max mounting capability | 6000 PCS/H |
Motor control scheme | Stepper closed-loop motor (flexible S type acceleration / deceleration) , closed-loop servo driver |
Industrial computer | SSD 32G, Intel 2core |
Applicable Components | 0402--5050,SOP,TQFP,QFN etc |
Components supply | Tape reel,bulk,Tray |
Tape width & Feeders number | Total=29, 8mm=25, 12mm=3, 16mm=1 |
UP Visual system | Identify angle deviations and position deviations |
Down Visual system | Automatic identify mark point of PCB |
Pump | 1 vacuum pump(-92KP), 1 blow pump |
Leakage material detection | Vacuum |
Power | 125W |
Power supply | AC220V/AC110V |
Gross weight | 50.2 kg |
Net Weight | 37.2 kg |
Volume | 0.38 |
Support software | Protl99/Altium Designer/Eagle/Pads/ Allegro |
Product Description
1. Q: How many nozzles do you supply? Do you sell nozzles and spares? |
A: The TVM802 has two nozzle-heads, we supply 4 nozzles. The TVM925 has 4 nozzle-heads, we supply 6 nozzles. Yes, we do sell nozzles and spares. If you need any spars, just let us know. |
2. Q: Do you provide software updates? |
A: Customers who buy our machines, we can offer free upgrades software for you. |
3. Q: What air supply is required? |
A: Oil free compressor and air dryer be used. |
4. Q: What is the performance? |
A:For QM41 it's 9,500 cph without vision mode ; 7,000 cph with vision mode. For TVM925 it's 9,000 cph without vision mode ; 7,000 cph with vision mode. For TVM802, it's 6,000 cph without vision mode ; 4,000 cph with vision mode. |
5. How about the warranty? |
We support one year warranty( The nozzle with a warranty of 1 months; belt with a warranty of 3 months ). We will regularly update the software for customers. If there is any doubt in the process of operating the machine, pls feel free contact us. We will help you in time. |
