Product parameters

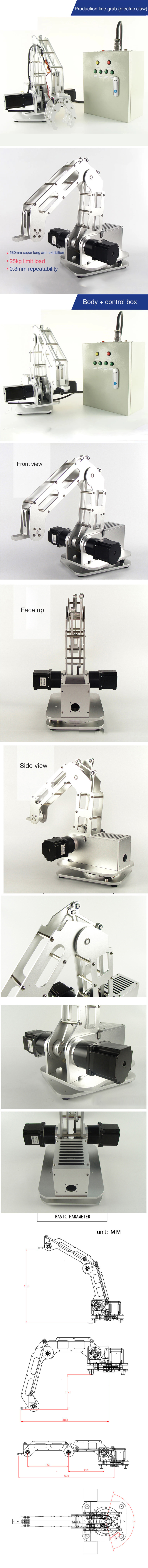

Product Name: Robotic Arm
Number of axes: 4
Load: 0.8KG-2. 5KG:
Maximum stretching distance: 580MM
Repeat positioning accuracy: 0.3MM
Communication interface: WIFI
Power supply voltage: 100-240V, 50/60HZ
Power input: 24V/20ADC
Power: 500W MAX
Working temperature: -10 ° C - 60 ° C
Axis motion parameter
Axis working range maximum speed (250g load)
Axis motion parameters 0°to +85° 320 °/s
Shaft 1 base -10°to +95° 320 °/s
Shaft 2 boom +90 to -90° 480 °/s
Axis 4 rotation +90°to -90° 480 °/s
Physical characteristics
Net weight robot arm and controller: 10KG
Base size: 220MM X 168MM
Material: aluminum alloy
Controller: Android phone or tablet
Robot installation: base fixing hole
Packing specification (length x width x height): wooden box 500X520X390 380X500X390MM
application
Software: APK
Extended I/0 interface
Four-way I0 output, two-way M0S drive, two relay nodes
Four I0 inputs for triggering four sets of actions
Two-way servo interface, can control 5V analog small steering gear
Can store four sets of actions, each group has a maximum of 254 nodes
End effector
Suction cup diameter: 20 mm
Paws Pressure: -35 Kpa Fit size: 27.5 mm
Suction cup
Drive mode: pneumatic
Strength: 8N
