64 ports imei changing quectel M26 gsm bulk sms modem sim pool

Brief Introduction

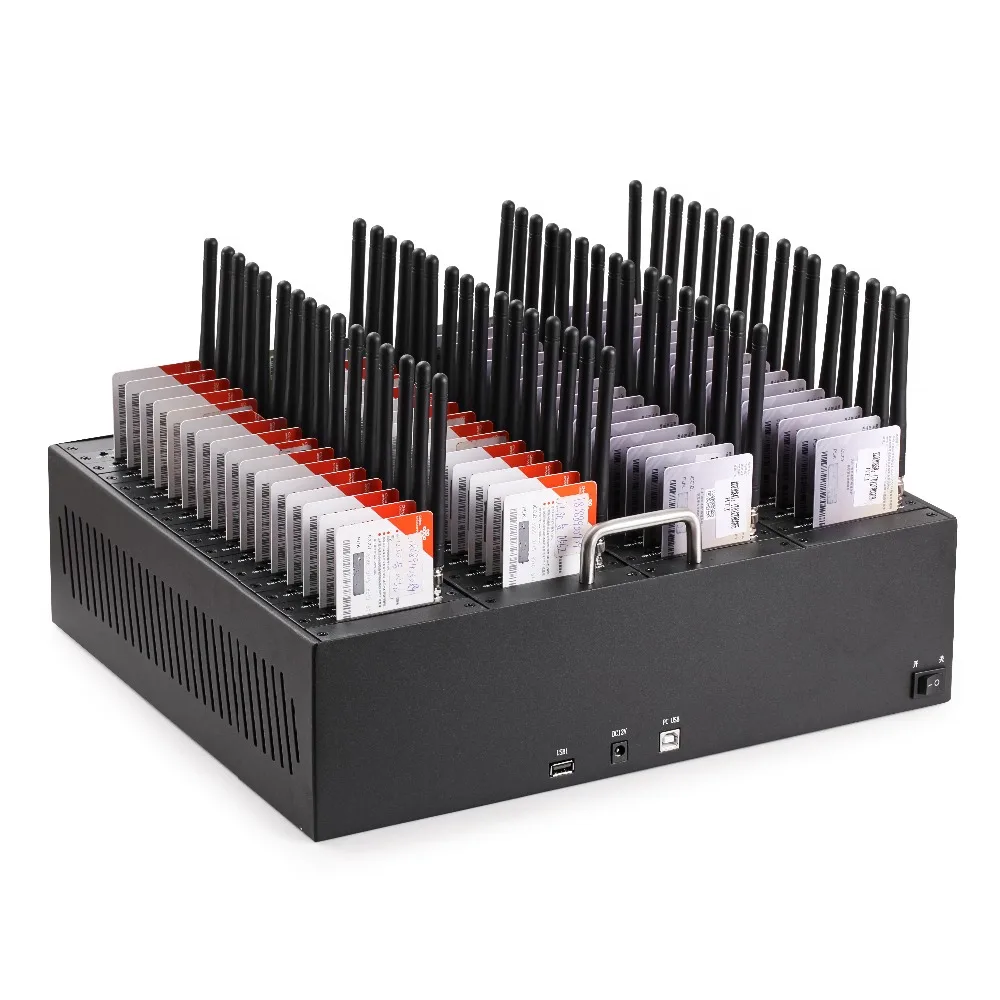

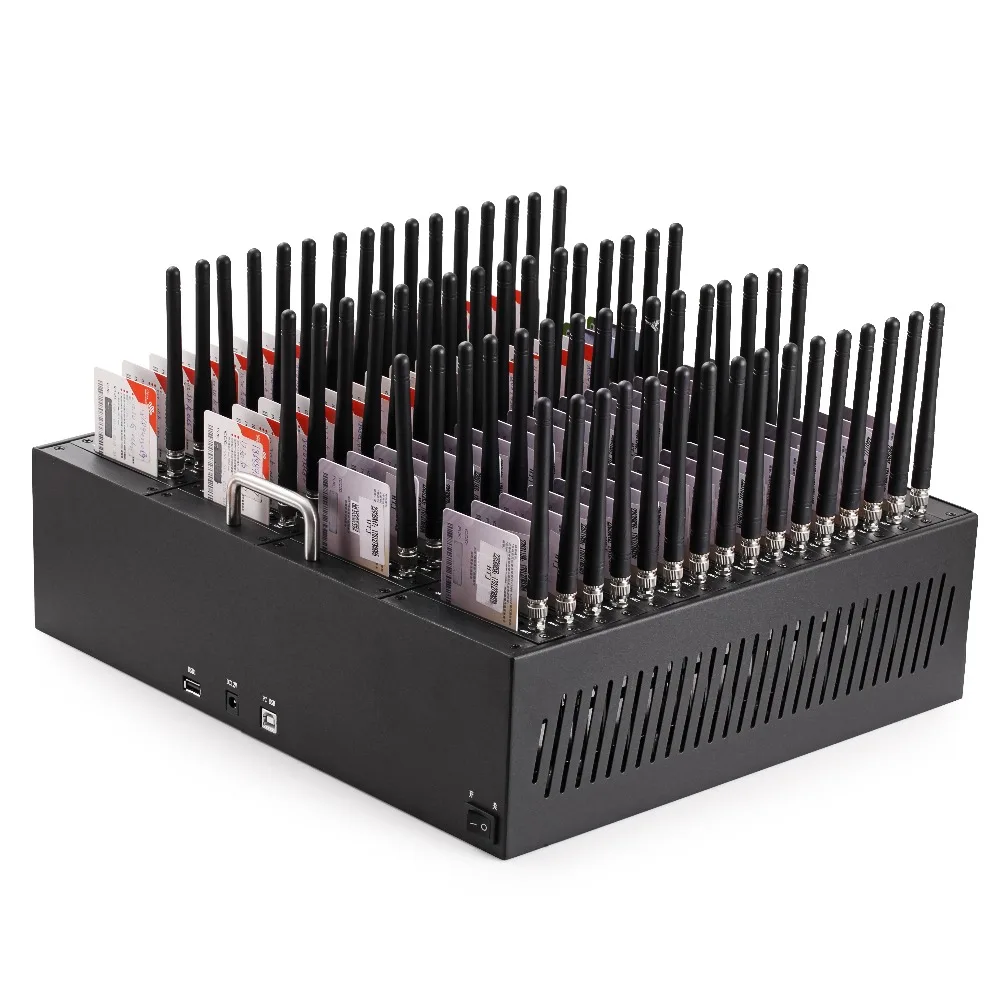

The device built-in 64 wireless modules can be inserted 64 SIM cards, can use 64 cards to send text messages, send speed as 64 times as a single channel modem. It uses the development of MTK module, 220V power supply, can be a long time stability, generous luxury housing.Main features:1, industrial-grade chips, to ensure stable operation
2, switch independence, support for the size of SIM card
3, ports support hot-swapping;
4, a separate module can be demolished;
5, power lines and data lines are only one of the more simple;
6, the size of a small, elegant, accounting for a smaller space (the size of the computer keyboard is only about half the size), especially suitable for the use of multiple machines at the same timeA, system advantages:Wireless GSM MODEM built on the broad masses of the personal needs of customers on the basis of the enterprises to meet the following requirements:
1, for the majority of customers the same or different delivery information;
2, promptly contact employees issued notices of meetings;
3, to avoid consuming a large number of enterprise human, material and information transfer on time;
4, to avoid high communication costs to be incurred in a month;
5, enterprises and customers (members) between the corporate partners, businesses and staff in the need for more exchanges.B, the system features:Send clusters: can be sent automatically to a large number of goals the same information.
Widely distributed: the geographical distribution of the target information widely scattered to support fast: after message, just a very short time can be transmitted to the target.
Convenience: the information through the portable phone to receive.
Accurate: the message can reach the goal of accurate and timely manner.
Exhaustive: the information sent by the computer system, significantly to avoid the artificial missing information.
Strong visibility: the way the text information to send and receive.
Economy: the reception of free information, send the cost of the SMS service provider in accordance with the rates, no long distance and roaming and other additional costs.
Time-saving and efficient: the same information can be sent at the same time to multiple targets; and can make use of multiple parallel processing terminal to send and receive text messages, thus saving a lot of time

Quad Band GSM Modem: 850/900/1800/1900Mhz (worldwide use)

Just like 64 single-channel equipments work at the same time

Can insert 64 sim cards (big or small)

MTK GSM Modem supportchange imei by AT command

Connection with the computer through a data line can be integrated with seri64

Compatible with OS: Linux / XP / Vista / WIN7 / WIN8/WIN 10 etc.

How to use

(1) Insert SIM Cards in Modem

(2) Install the USB deriver and SMS Caster (we will send these two free softwares to you via online email)

(3) Following is the steps of sending message via SMS Caster

Firstly

1. Install SMS Caster like common software and close it after installing successfully

2.Connect the GSM MODEM to computer correctly, and then there will be a prompt from computer to install driver.
3. Select the driver path for every port, it will install automatically.
4. After completing the driver installation, starting SMSCaster program, all ports will be found.

SecondlyOpen the smscaster, click the Phone, then update all, then you can check how many ports can work.
If some ports not shows proper, then you should check the simcards or change another simcards.

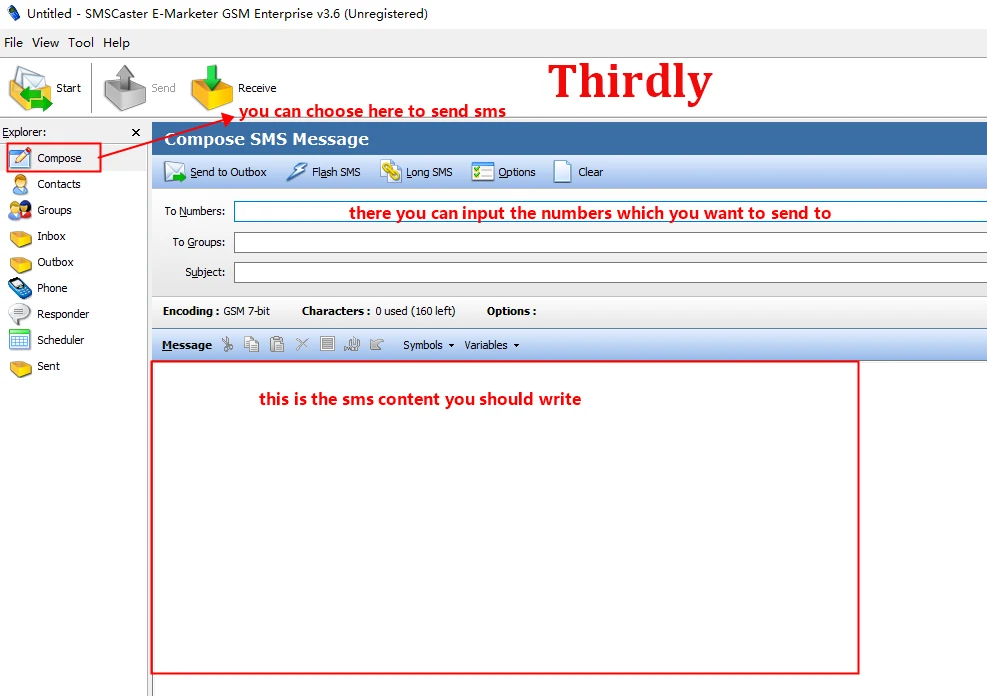

When you change simcards, you should shutdown the module, when insert simcards, then start it.ThirdlyCompose for sending sms ,you can input receiver number in To Numbers if you just want to send few numbers, then input the content, when you finish, then press Send to Outbox, the sms will be sent to Outbox, press the Outbox ,then you can see the detail sms list, then press the Send.They will be sent out (you should firstly choose the ports which you want to send sms ).

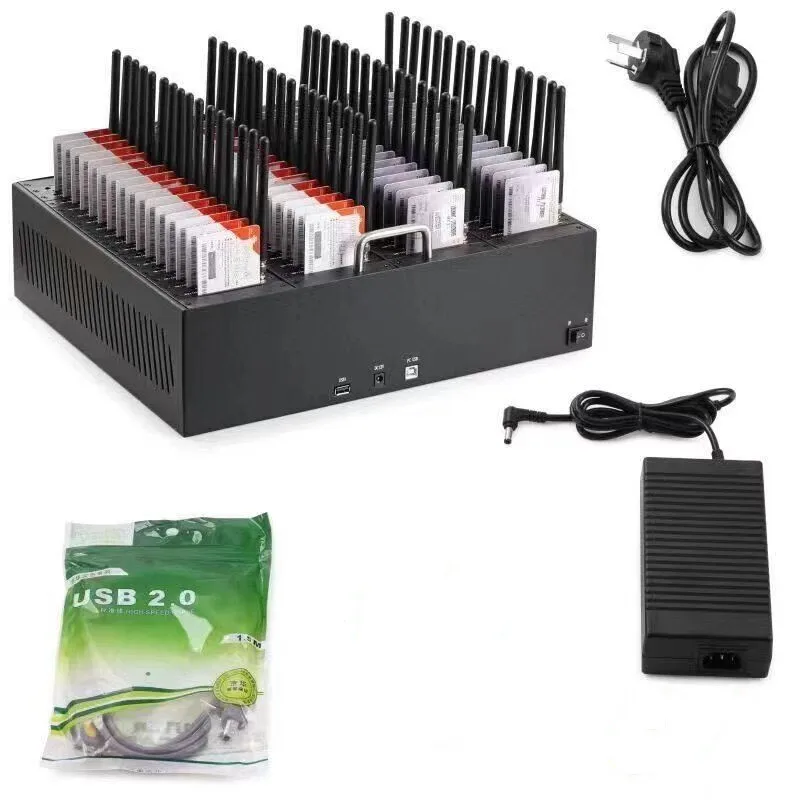

Packing List:
(1) SMS Modem Pool x 1
(2) USB Cable x 1
(3) Power Supply Adapter x 1
(4) Antennas x 64

Free trial version sms software will be provided. not license version. FAQQ.1: How to change IMEI?
(1) Open Putty
(2) Click " Serial"
(3) Input the com port in "Serial line" such as COM 1
(4) PUT IN "at&f"
(5) Put in "at+cgsn"//check IMEI
(6) at+egmr=1,7,"IMEI number" change imei, for example : AT+EGMR=1,7,"453243242432134"
if you put in imei is wrong ,it will reset or keep old IMEI
(7) put in "at+cgsn"//check new IMEI

Q.2: How to make call?
(1) Open Putty
(2) Click " Serial"
(3) Input the com port in "Serial line" such as COM 1
(4) PUT IN "at&f"
(5) Put in "ate1"
(6) Put in "atd number;" for example: atd 0976006161;
(7) Put in"ATH" hung off call
Q.3: How many kinds of modem for 2G GSM, 3G and 4G module?
M26/M35 for 2G GSM, UG96/UC20/UC15/SIM5320/SIM5360 for 3G, EC20/EC25/SIM7600 for 4G

Q.4: How is the sending speed of 2G, 3G and 4G modem?
2G: 1000 SMS per port per hour.
3G: 2800 SMS per port per hour.
4G: 3000 SMS per port per hour.

Q.5: How about our service?
We have professional engineer to help you about all your tech problems anytime,the satisfaction of our customers is our greatestdesire.
Q.6: What is our main express shipment?
DHL,UPS,FEDEX,TNT,EMS,Aramex(can ship to anywhere all over the world)

Q.7: How long we're warranty ?
1 year.

Q.8: During warranty time,if have problem,how to do?
We'll test by teamview or send back, we'll exchange new in free.

Q.9: How long about our techinical support?
Free in life.
